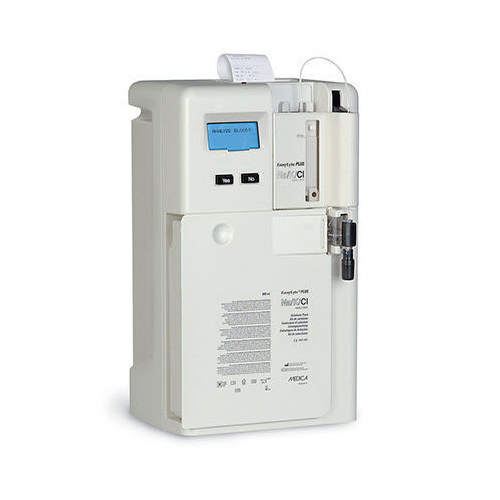

Electrolyte Analyzer EasyLyte

Electrolyte Analyzer
Available in four models:
EasyLyte Na+/K+
EasyLytePLUS Na+/K+/Cl-
EasyLyteLithium Na+/K+/Li+
EasyLyteCalcium Na+/K+/Ca++/pH

Easy to Use
Simple, menu-driven, Yes/No prompted operation
Whole blood, serum, plasma or urine samples
Results printed automatically in less than 60 seconds
Automatic or on-demand calibration
Automatic probe wiping

Easy to Maintain
All calibrants contained in convenient, disposable solutions pack
All waste collected in solutions pack
Disposable electrodes require no maintenance
Modular design makes maintaining analyzer simple and fast

Easy to Afford
Low analyzer purchase price
Low cost per test

EasySampler
The modular EasySampler connects quickly to the EasyLyte Na/K, Na/K/Cl, and Na/K/Li analyzers, enhancing laboratory performance.
21 sample positions
Dedicated Stat position
Normal/Abnormal QC positions
Optional auto-repeat of out-of-range values

Analyzer software insures ease of operation
Software computes quality control statistics, flags abnormal results, and monitors performance.
Two button operation
Automatic calibration
User-friendly menu

Specifications

(Na+/K+, Na+/K+/Cl-, Na+/K+/Li+, Na+/K+/Ca++/pH)

CLIA Classification: Moderate Complexity

Sample Type: Whole Blood, Serum, Plasma or Urine

Sample Size: 100 µL Whole Blood, Serum, Plasma, 60 µL capillary or 400 µL diluted (1:10) Urine

Method: Direct measurement by Ion Selective Electrode (ISE)

Measurement Range:

Blood Urine
Na+: 20 – 200 mmol/L Na+: 25 – 1000 mmol/L
K+: 0.2 – 40 mmol/L K+: 1.0 – 500 mmol/L
Cl-: 25 – 200 mmol/L Cl-: 25 – 500 mmol/L
Li+: 0.2 – 5.0 mmol/L
Ca++: 0.1 – 6.0 mmol/L
pH: 6.0 – 8.0 Units

Display Resolution:
Na+: 0.1 mmol/L
K+: 0.01 mmol/L
Cl-: 0.1 mmol/L
Li+: 0.01 mmol/L
Ca++: 0.01 mmol/L
pH: 0.005 units

Na+/K+ Na+/K+/Cl- Na+/K+/Li+ Na+/K+/Ca++/pH
Analysis time (blood) 55 sec 55 sec 55 sec 60 sec
Urine Mode Yes Yes Yes No
Analysis time (urine) 90 sec 90 sec 90 sec N/A
EasySampler Yes Yes Yes No
Capillary Samples Yes Yes Yes No

Data Storage:
Patient results — up to 128 samples
QC results — up to 20 each Normal, Low, and High

Calibration: Automatic or On-Demand

Output:
128 x 64 pixel graphic display
24 column thermal printer
Serial port (RS-232), EasySampler port

Ambient Conditions: 15–32oC (60–90oF), <85% humidity

Power: 100-240 VAC 50/60 Hz, 0.8A

Size & Weight:
9.5”W x 16.5”H x 8.0”D (24 cm W x 42 cm H x 20 cm D) 13 lbs. (5.8 kg)
