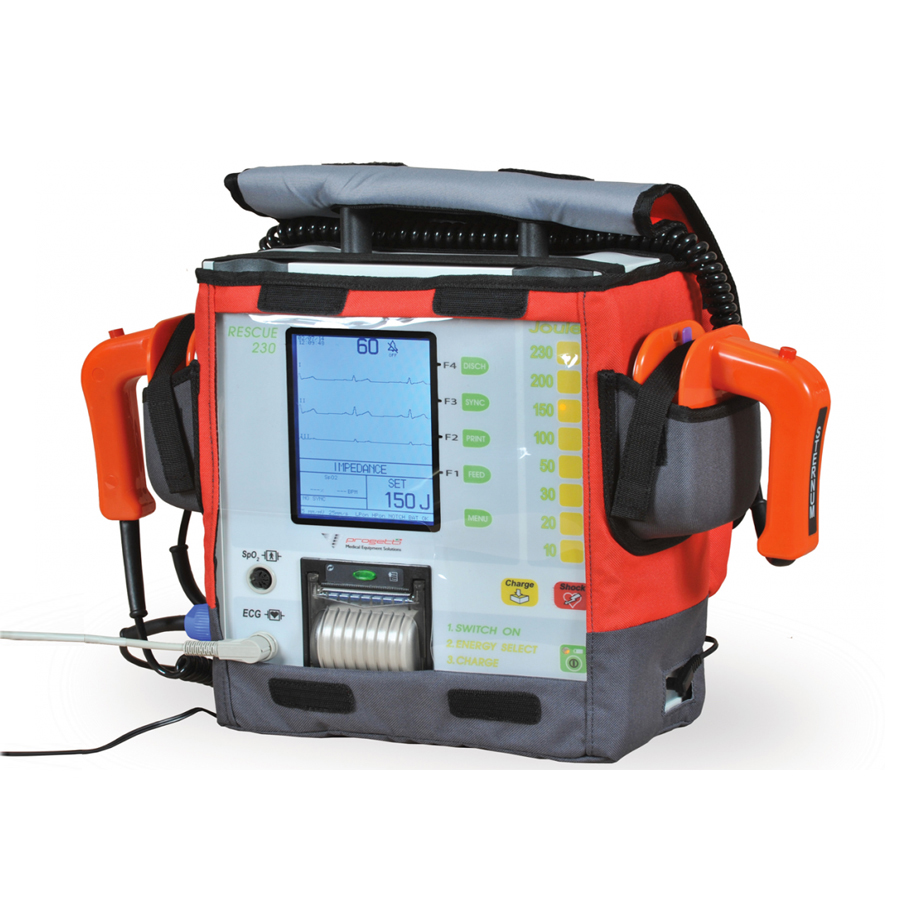

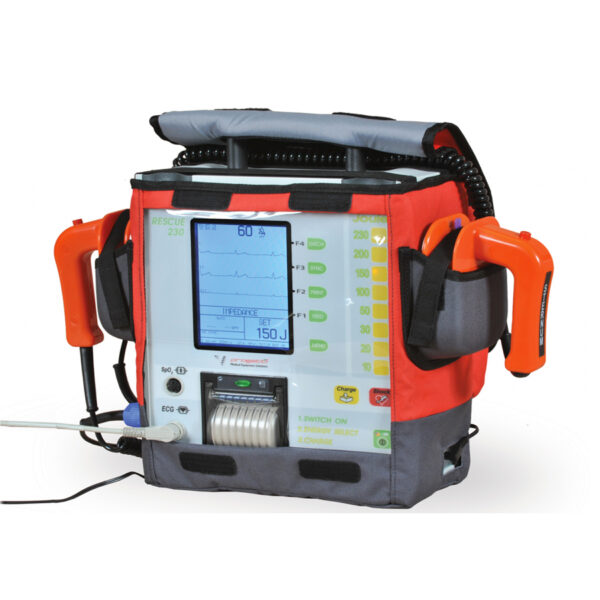

Biphasic Defibrillator Rescue 230

– BTE (Biphasic Truncated Exponential) discharge type
– impedance compensated energy delivery
– energy selection from 2 to 230 joule directly from the front panel
– charge time 5 sec for 230 joule with fully charged battery
– 100 shocks of 230 j with fully charged batteries
– charge/discharge control from the paddles
– ECG ‘R’ wave synchro mode or async mode
– large (5.7″) high resolution backlight LCD display (320×240 dots)
– ECG through the paddles or through patient cable
– adjustable HR and SpO2 alarms limits

• Display:

– large (5.7″) high resolution backlight LCD display (320×240 dots)

– ECG through the discharge paddles (1 trace) or through 4 leads patient cable (6 traces): I, II, III, aVR, aVL, aVF

– Automatic change over when plugging the patient cable

– Filters: 50/60 Hz, base line, low pass

– heart rate indicator

• Printer:

– auto printing mode

– integrated thermal printer for ECG traces and events documentation hardcopy

– paper speed 5, 10, 25 mm/sec (paper width 58 mm)

• Safety:

– two hands safety shock release

– ECG input insulation CF class

– internal discharge after 30 sec of standby after charge

• Power supply:

– internal Ni-Cd high capacity batteries (charging time 95%: 2 hours)

– universal mains adaptor charger 110/220 VAC, 50/60 Hz

• Dimensions: 34x26x13 cm

• Weight: 5.5 kg

• Made in Italy

Internal Ni-Cd high capacity battery
Carrying case
Patient cable 4 leads
Manual GB, IT, on request ES, TR
Printer
1 paper roll
2 reusable paddles
Mains adaptor charger
