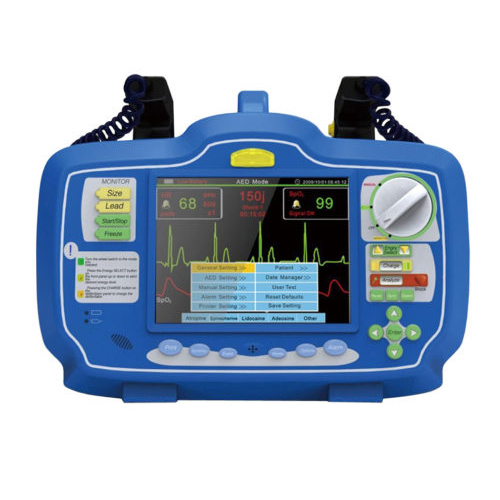

Defibrillator Monitor DM7000

Defibrillator Monitor Biphasic

Category:

Defibrillator Monitor

DM7000 is a defibrillation device, which can meet your clinical needs from Basic Life Support (BLS) to Advanced Cardiac Life Support (ACLS).

Technical specifications

Display

  • Screen Type: High-resolution display
  • Screen Size: 7 inches(17.7 cm)diagonally
  • Sweep Speed: 25mm/sec
  • Information: Heart Rate, Lead/Pads, Alarm On/Off, SpO2, AED
  • Functions and Prompts Alarm Selection and Limits, Delivered Energy.

SpO2 Module

  • Measurement Range: 30~100%, ±2% between 80%~90%, others ±5%
  • Alarm Range: Userset high limit and low limit.
  • Alarm Accuracy: ±10% withinsettingvalues.
  • Alarm time Accuracy: less than 12 sec.

Defibrillator

  • Waveform: Biphasic
  • Charge Time: Less than 7 seconds with a new fully charged battery.
  • Energy Display: Monitor display indicates both selected and delivered energy.
  • Charge Prompt Type: Voice and visual prompts.
  • Electrode Impedance Measurement Range: 0-250 ohms.

Recorder

  • Paper: 50mm thermal.
  • Speed:12.5mm/sec,25mm/sec,50mm/sec. User-selectable 6-seconddelay.
  • Printing Method: High-resolution, thermal print head.
  • Print-out Modes: Manual or automatic, user-configurable.
  • On/Off Control: Front panel and paddle.
  • Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.

ECG Monitoring

  • Patient Connection:3-lead ECG cable, or 5-lead ECG cable, paddles.
  • Lead Selection: Displayed on monitor, paddles, I,II, III, AVR,AVL, AVF,V.
  • ECG Size:0.25, 0.5,1, 1.5, 2, 4 cm/mV display on monitor.
  • Heart Rate:20-300 BPM.
  • Heart Rate Alarm: On/Off displayed on monitor, user-selectable.
  • Smart Alarms: Beeper/voice prompts indicate shockable rhythm.

AED Mode

  • AED Function: Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts.
  • Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV, ventricular tachycardia with rates >=140 bpm, and QRS complex wave duration >=140ms.
  • Charge Control: Control ondevice front panel, presskey on paddle.
  • Prompts: Voice and visual prompts.

Battery

  • Type: Rechargeable, Ni-MH battery, 12V.
  • Operating Time: For anew, fully charged battery: 60 defibrillator discharges at maximum energy, or 3 hours minimum of continuous ECG monitoring. Additional parameters will effect operating time with   different functions

Manual Mode

  • Energy Selection: Selectable at 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.
  • Synchronized Mode: Synchronizes defibrillator pulse to patient’s
  • R-wave. ”SYNC” message displayed on monitor
