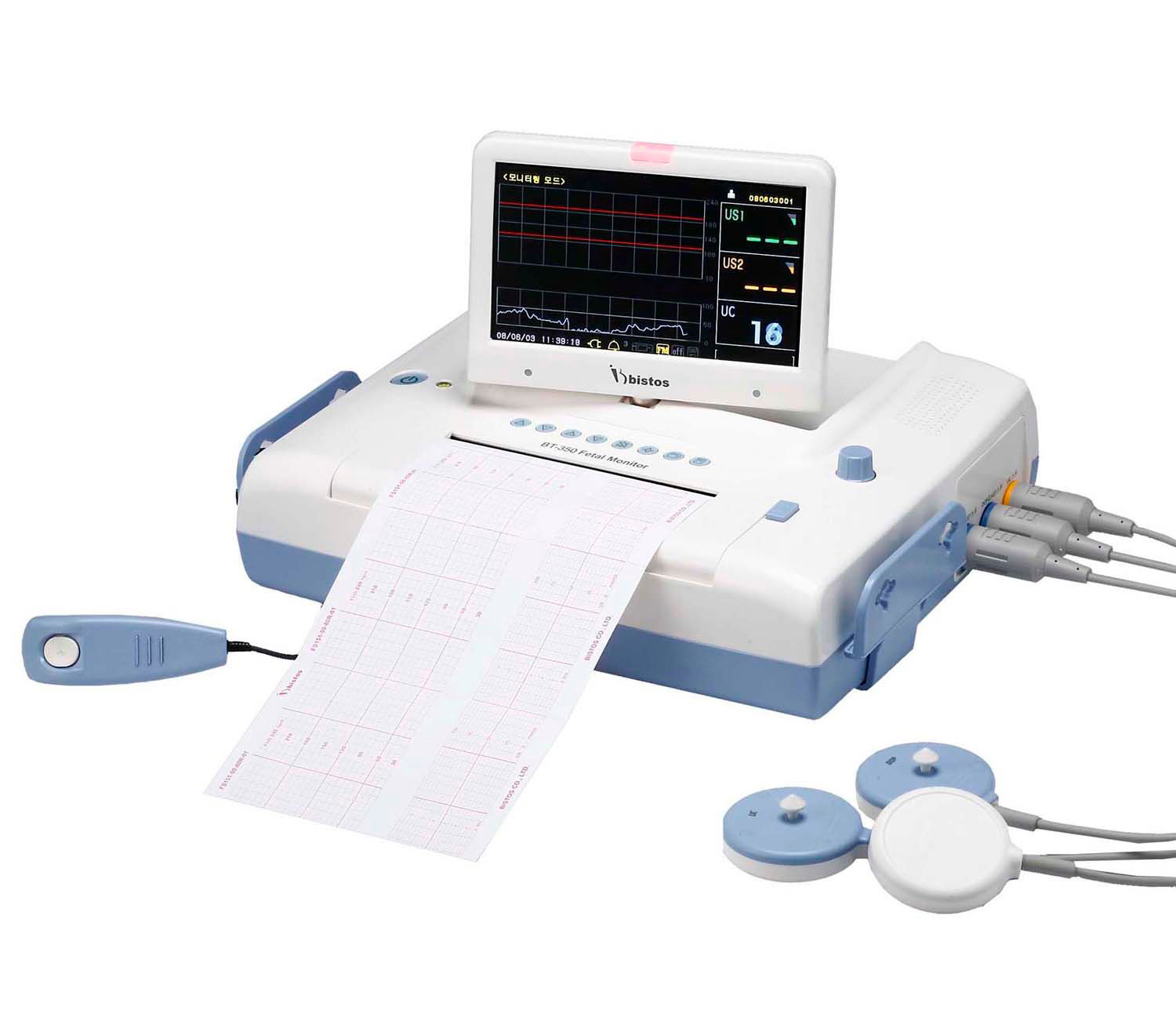

Fetal Monitor
• Twin FHR (dual pulsed Doppler)
• High-sensitivity from the 0.985MHz & waterproof probe
• Probe holder(4 probe holders on both side)
• Multiple language support
• Built-in quick guide (LCD type only)
• Interpretation function
• CCV(cross channel verification) function
• Data saving(450hours) and USB function
• GE / Philips paper compatible
• Rechargeable battery (1 hour operation : option)
• Desktop and wall mount installation
L : BT-350L Color LCD
E : BT-350E LED
Functional Characteristics
FHR
Method Pulsed Doppler (Twin)
Detection Technique Autocorrelation
Ultrasound Frequency 0.985MHz
FHR Range 30 ~ 240 / 50 ~ 210bpm ±2%
Ultrasound Intensity 10mW/cm² or less Sound
FHR Resolution 1bpm
UC(TOCO)
Frequency Response DC ~ 0.5Hz
Measurement Range 0 ~ 100units
External Type
Reference(Zero) Control
Sound
Doppler Sound
Alarm Sound Exceed HR limit
Information Sound Probe Disconnection, Door Open
Display No Paper, Low battery
FM
Auto Twin Detection
Display
Channel 3(FHR 1, FHR 2, UC)
Type 7″ TFT Color LCD (L)
7 Segment LED (E)
Function
Auto Print Off, 10, 20, 30, 40, 50, 60min
FHR 2 Offset
Zoom-in
FM Graph Print
Event Mark
Auto FHR Trend Interpretation
CCV(Cross Channel Verification)
Multi-language (L)
Quick Guide (L)
Power On Self Test (L)
Patient Name & ID (L)
Printer
Paper Type Z-fold, 150mm(W), 13.5m(Length)
Printer Type Thermal Array
Print Speed 1, 2, 3cm/min, 10cm/min(Trend)
Paper Feeding
Set-up
Alarm Upper / Lower Limit
Print Speed, Contrast
Time & Date
PC Interface Trend
Wire (RS232C) S/W : BCM-350
Wireless (Bluetooth/Wifi) S/W : BCM-350
Trend
Data Saving (L) 450hrs(3hrs/person)
Data Transfer to USB Memory
Power
Adaptor
Input : AC 100 ~ 240V (50/60Hz)
Output : DC 18V/2.5A
Consumption
80VA
Standard Configuration
Doppler Probe 2ea
UC Probe 1ea
Event Mark Jack 1ea
Print Paper 2ea
Probe Belt 3ea
Operation manual 1ea
Power Adaptor & Cord 1ea
Ultrasound Gel(250ml) 1ea
Probe Holder 2ea
Options
Rechargeable Battery 14.8V Li-ion
Wall Mount Bracket
AST(Acoustic Stimulator)
Cart Central Monitor Bluetooth/Wifi or Multi-port
Physical Characteristics
Dimension
Main Unit 326(W) x 276(D) x 96(H)mm
Packing 405(W) x 360(D) x 240(H)mm
Weight
Main Unit 2.8Kg
Packing 5.9Kg
Environmental Conditions
Operating Temperature 10 ~ 40°C (50 ~ 104°F)
Operating Humidity 5 ~ 85% non-condensing
Storage Temperature –20 ~ 60°C (–4 ~ 140°F)
Storage Humidity 0 ~ 95% non-condensing
Certificates
Certificates KFDA, CE, FDA
Waterproof DOP & UC Probe : IPX8
Standard IEC60601-1, IEC60601-1-2
IEC60601-2-37
