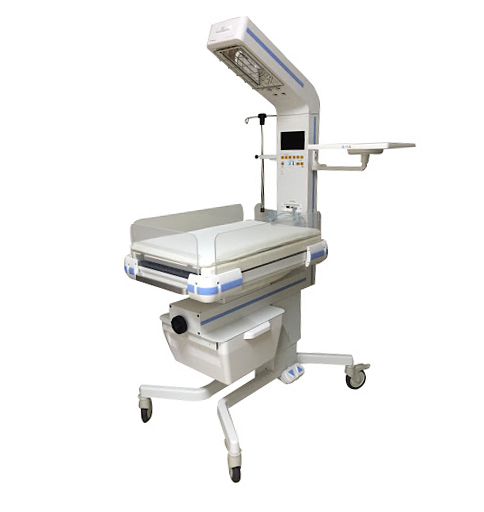

Infant Warmer BT-550

Radiant Warmer

• Far infrared heater
• APGAR timer
• 7” TFT color LCD display
• Swivel head
• LED examination lamp
• Correct weighing scale (±10g)

Functional Characteristics
Temperature (Servo Control)
Servo Control Prewarm / Baby / Manual
Skin Display Range 26 ~ 42°C ±0.3°C
Skin Control Range 34 ~ 38°C (in Baby Mode)
Infrared Heater
Manual Control Range 0 ~ 100%, 20levels
Output Power 600W
Mode Prewarm, Baby, Manual
Life Time 5,000hrs
Type 7″ TFT Color LCD
Alarm(Visual & Sound) 6 Events Alarms
Setting Range 0sec ~ 59min 59sec
Indicating Beep 1, 5, 10min
Examination Lamp
LED 40W(10W x 4ea)
Brightness Control 3levels
Illumination > 7,000lx
Microprocessor Controlled
Rotation of Head 90° (Left, Light both Directions)
Tripod Water Level
X-ray Tray
Weighing Scale (Option)
Measurement Range 0 ~ 10.0Kg ±10g
Tilt (Option)
Angle ±15°
IV Plate (Option)
Weight Limit Approx. 11Kg
PC Interface
Masimo SpO2 (Option)
SpO2 Range 1~ 100%
SpO2 Accuracy 70 ~ 100% ±3digits
0 ~ 69% : Unspecified
Pulse Rate Range 25 ~ 240bpm ±3digits
Basket (Option)
Weight Limit Approx. 10Kg
Input AC 110/220, 50/60Hz
Output AC 110/220, 50/60Hz, Max.400VA
Standard Configuration
Temperature Sensor 2ea
Power Cord 1ea
Operation manual 1ea
Lifting Stand
Ringer Pole
IV Plate
Weighing Scale
Masimo SpO2
Tilting Bed
Oxygen Delivery
Physical Characteristics
Standard 1,027(W) x 690(D) x 1,890(H)mm
Stand Fixed / Lifting 725(H) mm / 615 ~ 815(H)mm
Mattress 495(W) x 810(D) x 27(H)mm
Packing 1,150(W) x 750(D) x 1,550(H)mm
Standard / Full Option 83Kg / 98Kg
Packing 126Kg(Full Option)
Environmental Conditions
Operating Temperature 18 ~ 30°C (64.4 ~ 86°F)
Storage Temperature –10 ~ 60°C (14 ~ 140°F)
Operating Humidity 0 ~ 95% non-condensing
Storage Humidity 0 ~ 95% non-condensing
Certificates KFDA
Standard IEC60601-1, IEC60601-1-2
