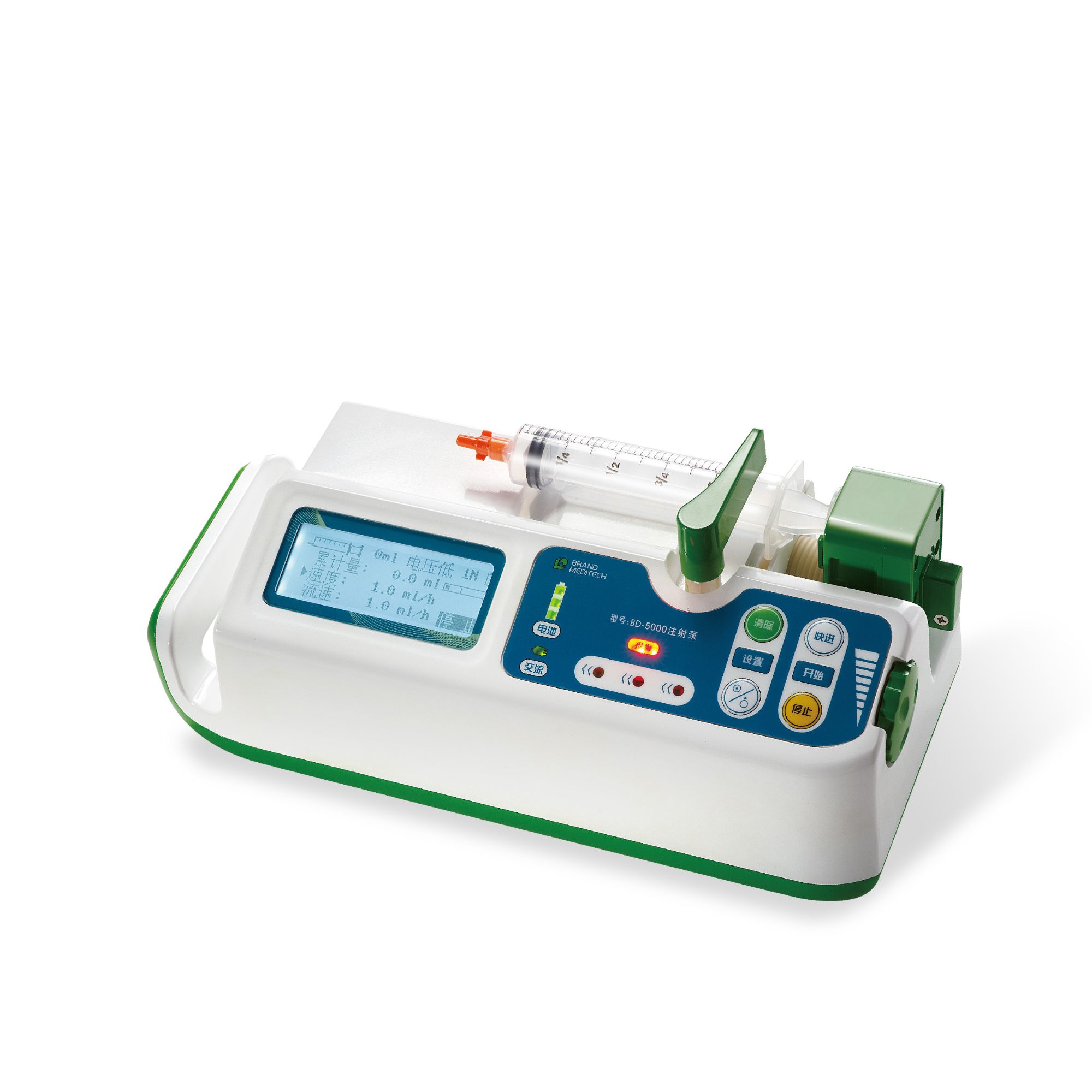

Syringe Pump BD-5000

Brand Meditech Syringe Pump

Category:

Model: BD-5000 syringe pump technical specification:

Maxim. Injection rate: 1500 ml/h (Different syringes have different maximum rate)

Applicable syringes: All brands of standard syringes: 5, 10, 20, 30 and 50 (60) ml

Drug library: More than 20 drug names: Penicillin, Vancomycin, Pitocin, Insulin, Lidocaine, Heparin, Atropin, Dopamine, Epinephrine etc.

Power supply: AC100-240V.50/60HZ

Gross weight: <3.0kg

Battery: Rechargeable lithium polymer battery 7.4V, 1600mA working for 4 hours (5ml/h) after being fully charged

Max power consumption: 25VA

Accumulated volume: 0.1~9999.9ml

Injection accuracy: ±3% (after being well adjusted, up to ±2%)

Injection increment: 0.1ml/h

Preset range: 0.1~9999.9ml

Classification: Class II, type BF

Injection rate range: 5ml: 0.1ml/h—100ml/h    10ml: 0.1ml/h—200ml/h

20ml: 0.1ml/h—400ml/h   30ml: 0.1ml/h—600ml/h

50 (60) ml: 0.1ml/h—1500ml/h

Bolus rate: 5ml: 100ml/h   10ml: 200ml/h   20ml: 400ml/h

30ml: 400-600ml/h   50ml: 400-1500ml/h

Alarm function: NEAR, OVER, OCCL., syringe disengaged, no AC power supply, low battery, serious low battery, error 1/2/3, preset volume alarm

Selectable modes: 1. Rate Mode   2. Time Mode   3. Body Weight Mode

Time mode: Volume limit: 0.1-999.9ml  Time: 1-2000min

Body weight mode: Body weight: 0.1~300kg      Drug limit: 0.1~999.9mg

Volume limit: 0.1~999.9ml  Dose: 0.1~9999.9(subject to unit, dosage, liquid, weight and syringe)Unit: mg/kg/h, ug/kg/min

Occlusion value: 0.04Mpa-0.16Mpa

KVO rate: Adjustable range: 0.1ml/h-5.0ml/h, choose “OFF” to cancel

EMC: Meet the requirements of IEC60601-1-2(2007 version)

Electrical safety: Meet the requirements of EN60601-1:1990+A1:1993+A2:1995

Two CPU
