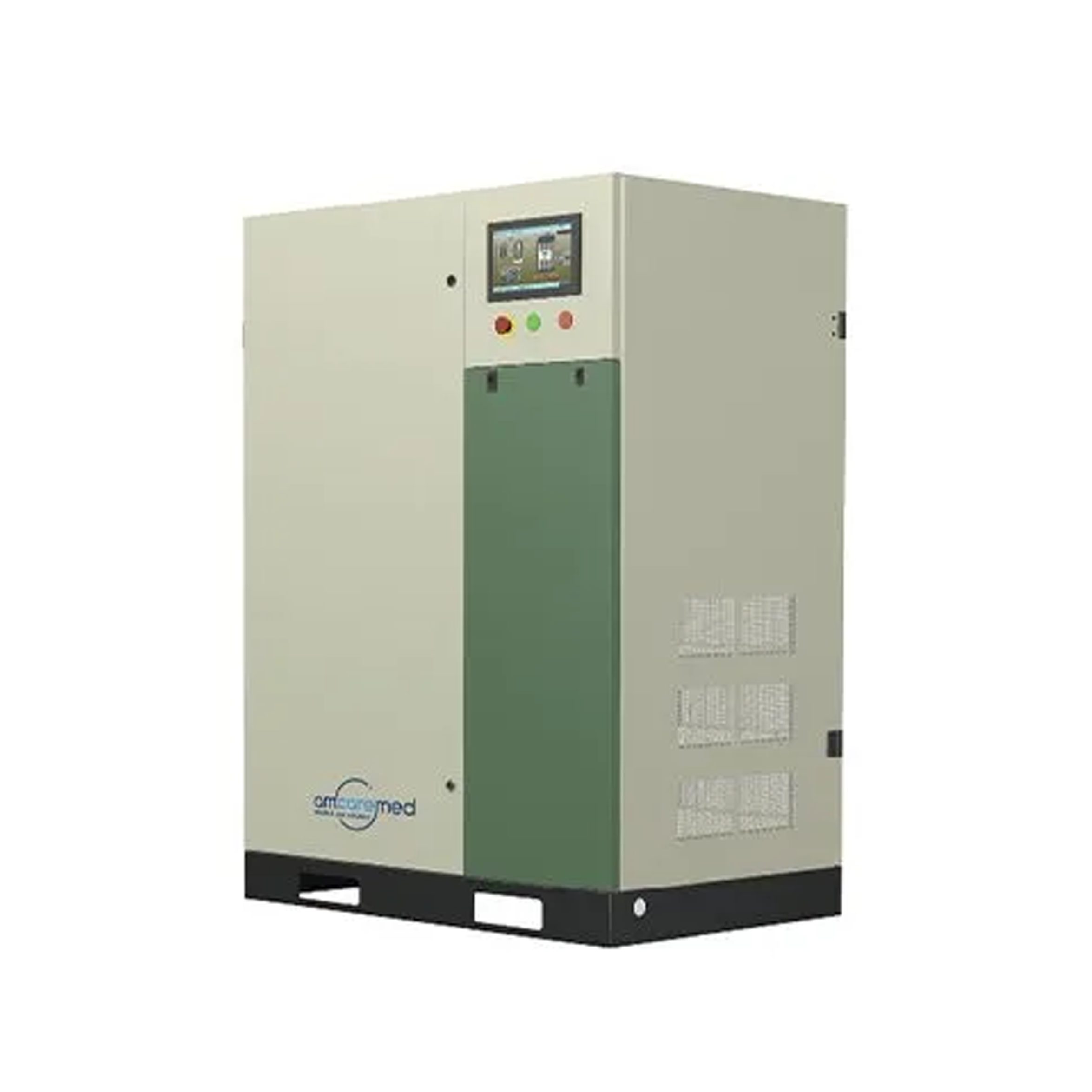

All-In-One Medical Oxygen Plant

All-in-one medical oxygen generator system of AmcareMed uses air as raw material in the process of oxygen generation and only consumes electricity. High efficiency, low energy consumption, high oxygen separation rate. Oxygen purity can reach >93±3%

Features and Benefits

  • Modular integrated design, compact structure, energy saving
  • Long-lasting and stable operation can solve the problem of undurability in plateau areas
  • It can prevent the molecular sieve of the oxygen generator from failing when encountering oil
  • Lubricant free, no degreasing filter required
  • Built-in moisture monitoring system to effectively protect the molecular sieve from failure in water
  • Molecular sieve aluminum cylinder and advanced filling process reduce the problem of molecular sieve pulverization
  • Intelligent touch screen control system

Model Parameters

Model Flow Power Pressure Size Weight
OY-006A (3 Cylinder Per Day) 50lbs 0.6m3/h 1.5Kw 0.3-0.5Mpa 1600*750*1300 420Kg
OY-01A (5 Cylinder Per Day) 50lbs 1m3/h 2.2Kw 0.3-0.5Mpa 1600*750*1300 480Kg
OY-03A (15 Cylinder Per Day) 50lbs 3m3/h 5.5Kw 0.3-0.5Mpa 1600*800*1500 550Kg
OY-05A (24 Cylinder Per Day) 50lbs 5m3/h 11Kw 0.3-0.5Mpa 1600*800*1920 750Kg
OY-10A (48 Cylinder Per Day) 50lbs 10m3/h 15Kw 0.3-0.5Mpa 1600*950*1920 950Kg
