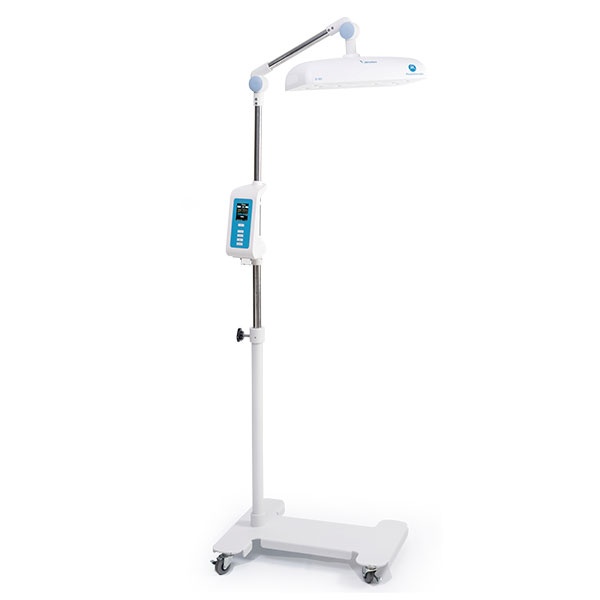

Neonatal Phototherapy Unit BT-400

Bistos Phototherapy BT-400 is the ultimate LED light therapy treatment for Jaundice.


  • Stand type for neonatal jaundice treatment
  • Control light intensity (High, Low)
  • Extensive long LED lifetime up to 100,000 hours

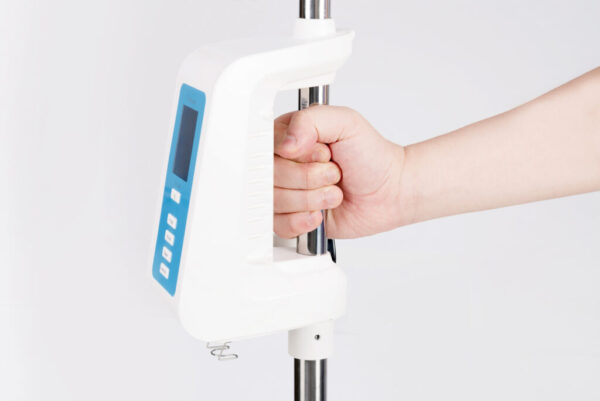

  • Built-in clamp provides various installation options
Functional Characteristics
Light Source Function

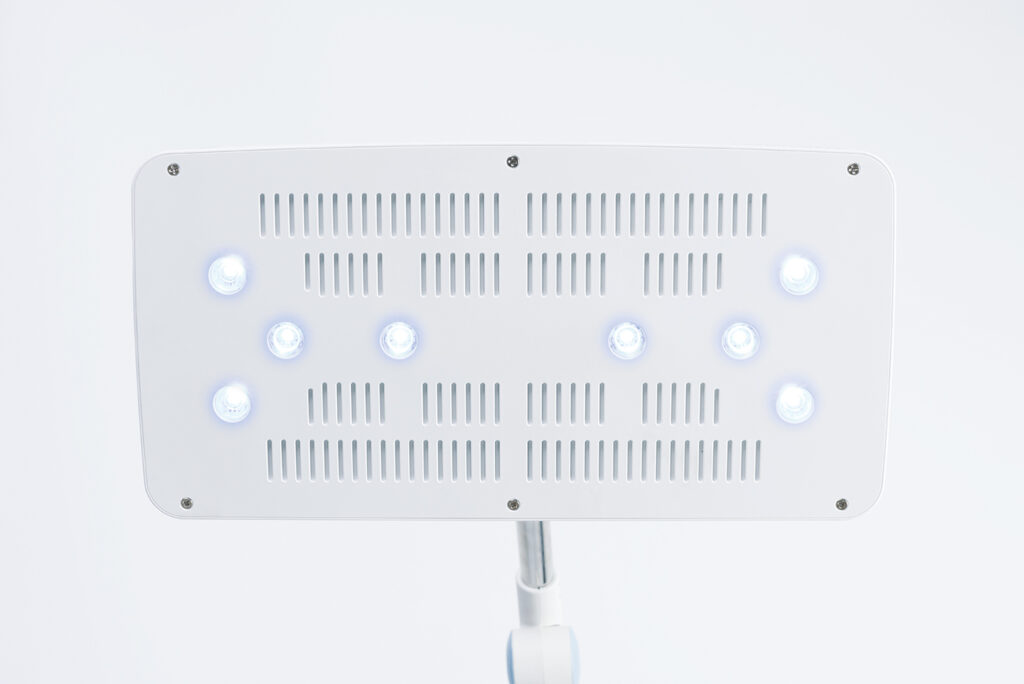

Type Blue LED (8ea) Uniform Distribution Intensity
Wavelength Peak Between 450~475nm Intensity (at 40cm) Low : 25 ~ 35µW/cm²
Variation in Intensity ±10% (over 6hrs within effective surface area) High : 35 ~ 55µW/cm²
Effective Surface Area 40 x 20cm Timer 30min ~ 999hrs/30min
LED Life Time 100,000hrs Operating & Total Using Time Display
Display Heat output at 40cm over 6hrs
LCD 2.4″ TFT Color LCD < 10 ℃ warmer than ambient
Noise at 40cm
< 30 dB
Voltage Input : AC 100 ~ 240V (50/60Hz) Consumption 70VA
Standard Configuration
Main unit 1ea Eye shielder 2ea
Power Cord 1ea Operation Manual 1ea
Cart Shade
Physical Characteristics
Dimension Weight
Assembled 525.5(W)x430(D)x1770(H)mm Assembled 12.0Kg
Main Unit 541.6(W)x370(D)x568.9(H)mm Main Unit 3.3Kg
Main Unit Packing 575(W)x300(D)x245(H)mm Main Unit Packing 5.1Kg
Cart 525.5(W)x430(D)x1150(H.MAX.)mm Cart 8.5Kg
Cart Packing 545(W)x435(D)x150(H)mm Cart Packing 9.8Kg
Environmental Conditions
Operation Transport & Storage
Temperature 10 ~ 40°C (50 ~ 104°F) Temperature –20 ~ 60°C (–4 ~ 140°F)
Humidity 5 ~ 85%, non-condensing Humidity 0 ~ 95% non-condensing
Pressure 80 ~ 106 kPa Pressure 70 ~ 106 kPa
