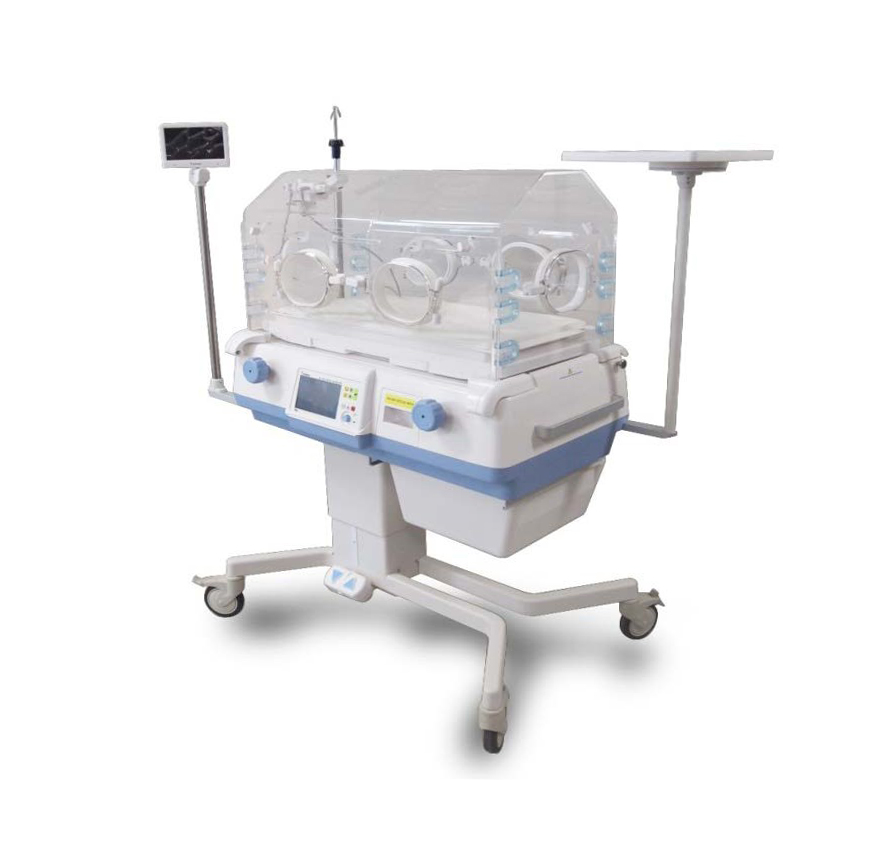

Model BT-500
Infant Incubator
Servo temperature control (Manual, Baby, Pre-warm mode)
Swivel head and X-rays tray for other procedure
Tilting mattress for Trendelenburg treatment
Easy removable side walls for easy access and cleaning
APGAR timer for 1, 5, 10 minutes
LED Examination light for 3 level brightness
Air Temp.
Control
Normal : 23 – 37°C
Override : 37.1 – 39°C
Measurement 20 – 45 ±0.5°C
Skin Temp.
Control
Normal : 35 – 37.5°C
Override : 37.6 – 39°C
Measurement 25 – 45 ±0.3°C
Humidity
Control 30 – 95%
Measurement 15 – 99 ±5% RH
System Steam (Boiling at 100°C)
Water Tank 1,000ml (Autoclavable)
Scale (Optional)
Measurement 0 – 10Kg ±10g
Trend 216 Hour
O2 (Optional)
Control 21 – 65 ±5%
Measurement 18 – 100 ±5%
Masimo SpO2 (Optional)
Measurement 1 – 100%
Accuracy ± 3% (70-100%)
Unspecified (0~69%)
Pulse Rate Range 25 – 240bpm ±3bpm
CCD Camera (Optional)
Resolution 2.5M pixel
Video Transfer Wi-Fi
Hood
Hand Port 6 Door
Tubing Port 2 x 6 Port
Structure Double wall
Air Curtain Support
Noise < 45dB
Bed
Tilt < 12°
Matress 72 x 39 x 2 cm
X-ray tray 35 x 40 cm
Lifting Stand (Optional) Height 65 – 85 cm
IV Plate (Optional) Load limit 11 Kg
IV Pole (Optional) Hook 2 Hook
Basket (Optional) Load limit 10 Kg
Shelf (Optional) Load limit 3 Kg
Air filter
Particle 0.3 Micron
Efficiency 99.8%
General
Display 7” TFC Color LCD
Trend 72 Hour
Alarm 27 Events (Visual & Sound)
Warm up < 30 Minute (Fast Mode)
Self Test Power On
Multi Language Support
Quick Guide In-built
Dimensions
Standard (HWD) 1,354 x 1,024 x 690 mm
With Lifting (H) 1,244 – 1,444 mm
Weight
Standard 99.3 Kg
Maximum 117.5 Kg
