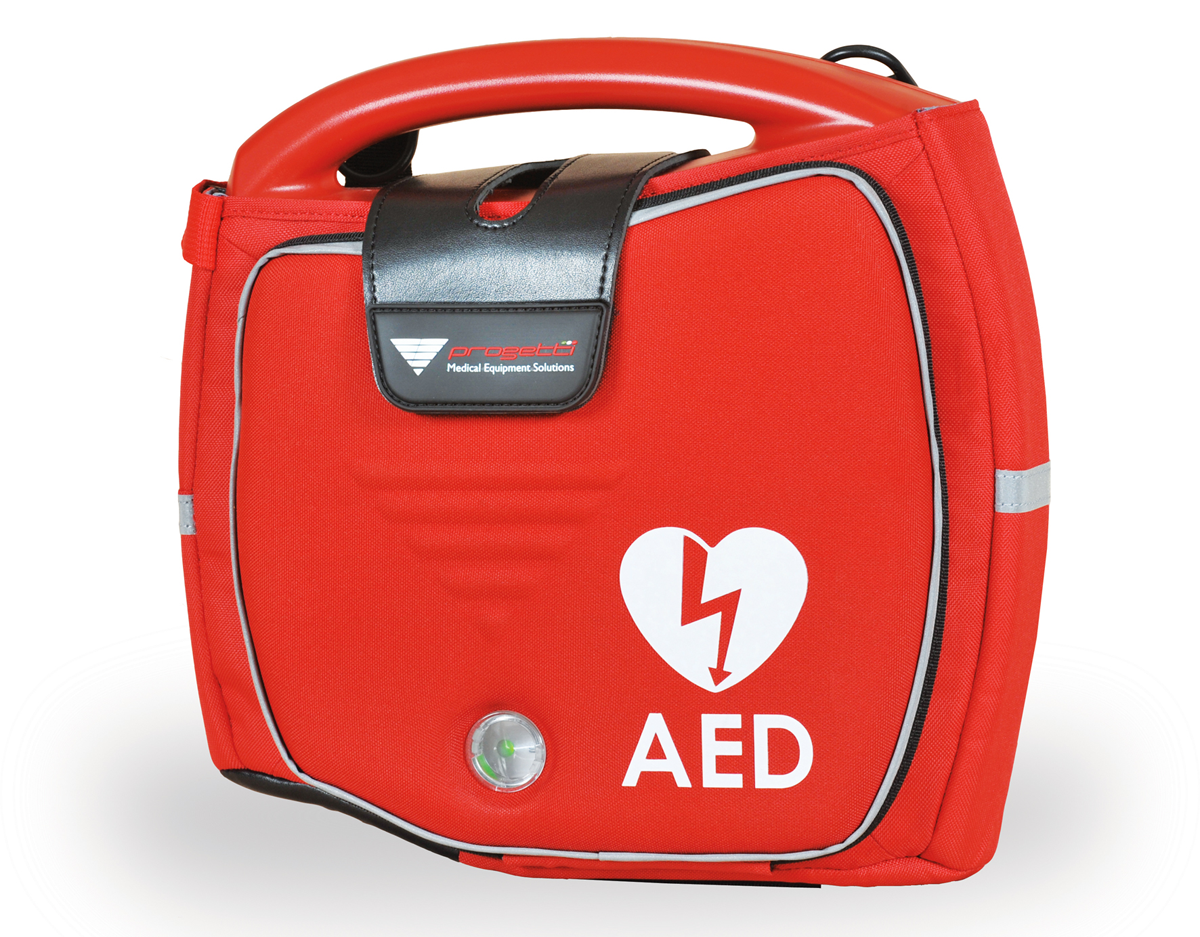

AED Defibrillator Rescue SAM

Automated External Defibrillator

Category:
Technical Specifications:
• Operating mode: Semi-automatic (DAE)
• Waveform: BTE (Biphasic Exponential Truncated) impedance compensated
• Energy: 200 J fixed
• Charge control: Automatic by software (Arrhythmia Detection System and charging control)
• Charge time: < 10 seconds
• Time between discharges: < 20 seconds
• ECG data acquisition: Derivation II, by defibrillation pads.
• Band from 1 Hz to 35 Hz
• Impedance: 25  to 200 Ω
• ECG analisis system:
– Voice instructions: Vocal and optical message guide during rescue operations
• Autotest: automatic, battery insertion, daily/weekly/monthly
• Battery: 12 Volt DC, 42 Ah, LiMnO2 disposable long life
• Battery capacity: 200 shocks or 4 hours of operating time
• Data recording, stored: first 60 minutes of ECG and the entire incident’s event
• Size-: 30 x 28 x 90 h cm
• Weight: 2.3 kg with battery
