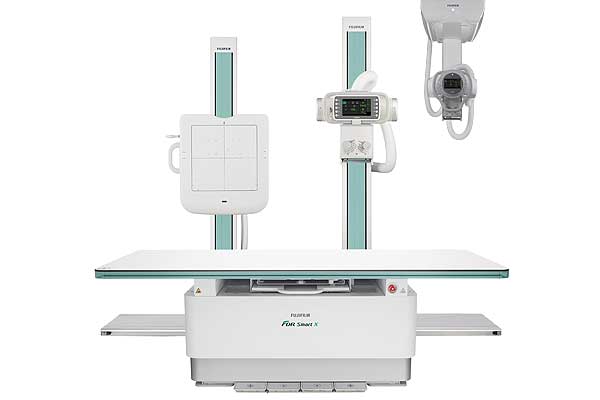

X-ray Machine FDR Smart X FGXR-40S

FDR Smart X is Fujifilm’s newly developed X-ray system, providing multi-function, high-quality, cost-effective X-ray solutions.

Model: FGXR-40S

FDR Smart X is Fujifilm’s newly developed X-ray system, providing multi-function, high-quality, cost-effective X-ray solutions. The Smart X offers ceiling suspended X-ray tube configurations as well as a floor mounted X-ray tube option for use with the upright stand and table, providing flexible solutions for your imaging department. Compatible with Fujifilm’s latest D-EVO II series DR panels with their advanced features and high image quality. Also CR cassette and F/S cassette are available for FDR Smart X.

Wall Bucky Stand Automatic Tilting

Automatic and manual tilting of the upright bucky stand is available*. Providing an improved workflow for the radiographers and an improved experience to those patients in wheelchairs.

*Different stand is lined-up for each

Control Panel of Automatic Tilting Wall Stand

The ability to store preset positions and move the wall stand automatically to those positions provides a quick and efficient workflow.

Removable Grid

Removable grids in both the table and upright stand, allow flexible working (such as Pediatrics).

Dual Reference Rotation

Not only top reference, but also center rotation can be selected when using 14″ x 17″DR panels. This provides flexible solutions, enabling exposure of areas other than the chest without taking out the panel and insert again in rotated direction or using larger panel.

Automatic Tracking

Tube head and bucky move synchronized with each other supporting positioning for exposure.

Elevating Patient Table

A motorized height adjustable floating top table with a weight limit of 300 kg. Synchronisation (Tracking) of the tube with both upright and table detectors. Available with ceiling and floor mounted systems.

Rotating Tray

Rotating tray is also available for table. Direction of the panel can be changed according to the patient position.

Automatic Connection

The SE cable + connector are already built in the tray, thus, just setting the DR panels into the tray, DR panels are automatically connected. Also, there is no need to handle the cables around the bucky.
Combined with rotation function, this will greatly improve efficiency and remove the stress of the workflow.

Fail Safe Switch

Fail safe switch detects panel in side the tray / bucky. When the panel is not inside the bucky or not inserted properly, exposing X-ray is unable. Thus, false exposure can be prevented.

Realizing optimized workflow

Detector Console and X-ray controller are integrated, displaying in the same monitor. Setting the exposure condition and selecting the exposure menu can be done in the same PC.

Technique select buttons

Connected modalities (panels / cassettes) are displayed both in Console and X-ray controller. By simply selecting the button, the modality can be changed and they are synchronized between Console and X-ray controller.

Status display for DR panel

When DR panel is used, it is available to confirm its status; wireless connection level, battery charge level, etc.

Compatible for DR and CR systems

Both DR panel and CR cassette can be used for FDR Smart X. (Also, F/S cassette is available) They can be used in the same system at the same time, either the workflow is the same, and the image appears in the console. (Using F/S cassette, image does not appear)

Generator Model GXR-40
Output Rating 40 kW
Line Normal, Phase 230VAC,

1Φ, ±10%

400/480VAC,

3Φ,

±10% (option)

Line Frequency 50/60Hz (Outside North America)
kV Range 40~125kV, 1kV step

(150kV option)

mA Range 10 to 500mA
Timer Range 0.001 to 10 sec, 38 steps
mAs Range 0.1 to 500mAs (Optional higher mAs)
Max Power Output 500mA@80kV

400mA@100kV

320mA@125kV
