Computed Radiography Prima T2 with FCRView

This compact table-top reader unit has outstandingly high-speed processing to challenge the common misconception of CR.

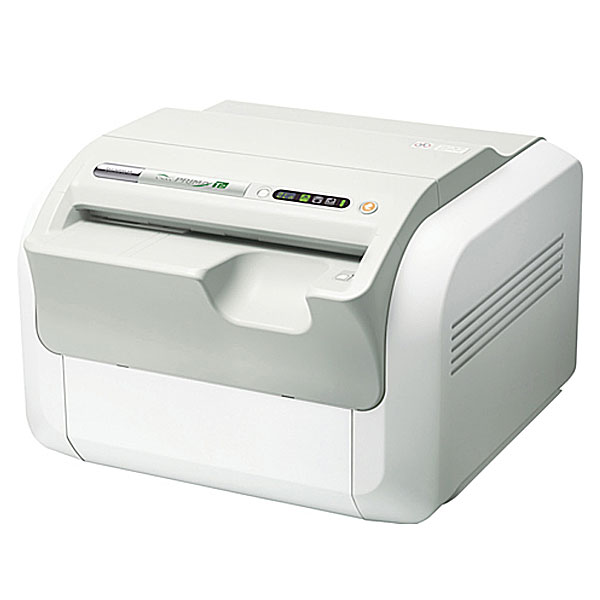

Fujifilm Computed Radiography (FCR) PRIMA T2 with FCRView

High-speed processing

FCR PRIMA T2 is a table-top reader unit which boasts a world-class high processing speed of 73 IPs/hour.In the high speed mode (5 pixels/mm), throughput is enhanced almost 70% compared with FCR PRIMA T (only for IPs of 14″ × 17″ and 14″ × 14″ ). As with all Fujifilm equipment FCR PRIMA T2 is easy to operate. It will help reduce patient waiting time and greatly increase the efficiency of examination workflow.

Space-saving design

FCR PRIMA T2, with its light and compact table top design, can be placed on a desk, shelf or anywhere space is limited. As this is a fully digital reader, neither a darkroom nor automatic processor is required. FCR PRIMA T2 can always be installed in the space formally used by a chemistry based processor.

Stable high-quality images

Although this is a compact machine its excellent image quality is the same as that produced by the rest of the FCR range. Image Intelligenceâ„¢, Fujifilm’s proprietary image processing technology, enhances image contrast and sharpness, without any deterioration of details. FCR PRIMA T2 supports accurate diagnosis by offering stable and optimized image quality.

All-in-one workstation

FCR PRIMA Console and FCRView are an all-in-one viewers that turns your desktop into a multi-function workstation for all your radiographic imaging needs. You can initiate exposures, process and print your studies and backup patient information all within a single unit.

Specifications

Standard Components FCR PRIMA T2 Image Reader (Model: CR-IR 392)
Applicable Console FCR PRIMA Console, FCRView, CR Console, Console Advance
Main Connectable Imagers DRYPIX PRIMA/Smart/Lite/Plus/4000
Supplies
Imaging Plate ST-VI:
35 × 43 cm (14″ × 17″), 35 × 35 cm (14″ × 14″), 10″ × 12″, 8″ × 10″,
24 × 30 cm, 18 × 24 cm, 15 × 30 cm
IP Cassette Type CC:
35 × 43 cm (14″ × 17″), 35 × 35 cm (14″ × 14″), 10″ × 12″, 8″ × 10″,
24 × 30 cm, 18 × 24 cm, 15 × 30 cm
Time Required for IP Feed / Load Min. 49 sec.
Processing Capacity Up to 73 IPs/hr.
Reading Specification 10 pixels / mm, 5 pixels / mm
Time to Start on Display Min. 33 sec.
Time to Print on DRYPIX PRIMA Approx. 165 sec. (Approx. 155 sec.)* in case of 35 × 43 cm(14″ × 17″ )
Number of Stacker 1
Network 10 Base T / 100 Base TX
Dimensions (W × D × H) 560 × 540 × 392 mm (22″ × 21″ × 15″)
Weight 39 kg (86 lbs.)
Power Supply Conditions Single phase 50 – 60 Hz
AC 120 – 240 V ±10% 1.9 A (max)
Environmental Conditions
Operating Conditions:
  • Temperature: 15-30 °C
  • Humidity: 15-80% RH (No dew condensation)
  • Atmospheric pressure: 750-1060 hPa
