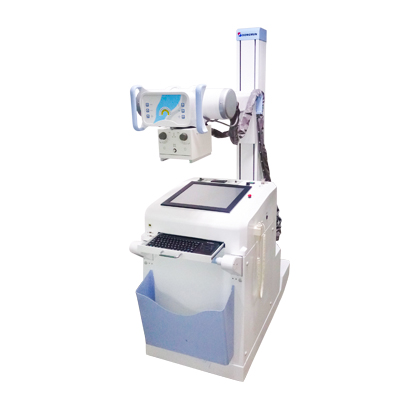

Mobile X-ray DM-525MR

Mobile X-ray

  • High frequency inverter technology.
  • Motor driven by battery -rack insure min 4 hours interupped.
  • Easy to operate in small room, and emergency.
  • Built-in Touch screen PC work station-Digital system.
  • Main power by built-in capacitor bank makes radiography
  • exemptions without being plugged to AC outlet.
  • Duration in standby status : approx 16hours.
Model DM-525MR
Generator Power Rating 20kW 32kW 40kW
kV(Accuracy) 40-125(±5%+1kv) 40-125(±5%+1kV) 40-125(±5%+1kV)
mA Range 50,100,150,200,250 10~400 10~500
mA Accuracy ±5%+1mA ±5%+1mA ±5%+1mA
Time Range 1ms~10sec 1ms~10sec 1ms~10sec
mAs Range 0.4~320mAs 0.4~500mAs 0.4~500mAs
APR 216 216 216
Bucky 2 Buskies 2 Buskies 2 Buskies
Line power 220/240V, 50/60Hz,1Ph 220/240V, 50/60Hz,1Ph 220/240V, 50/60Hz,1Ph
X-ray Tube Rotating Anod Type 1.0×2.0mm or 0.6×1.2mm Dual focus
Expossable images 200 images/6 hours or more
Tube stand Lock Electromagnetic
Vertical movement 950-1,650mm
Transversal 600-770mm
Rotating movement ±180° at each 90°
Handle bar Angle indication ±180°
Collimator Manual driven 12V/12W. LED lamp
HT cable Federal ends 2.5mx2
Mobile cart Transportation Motor driving with storage box
