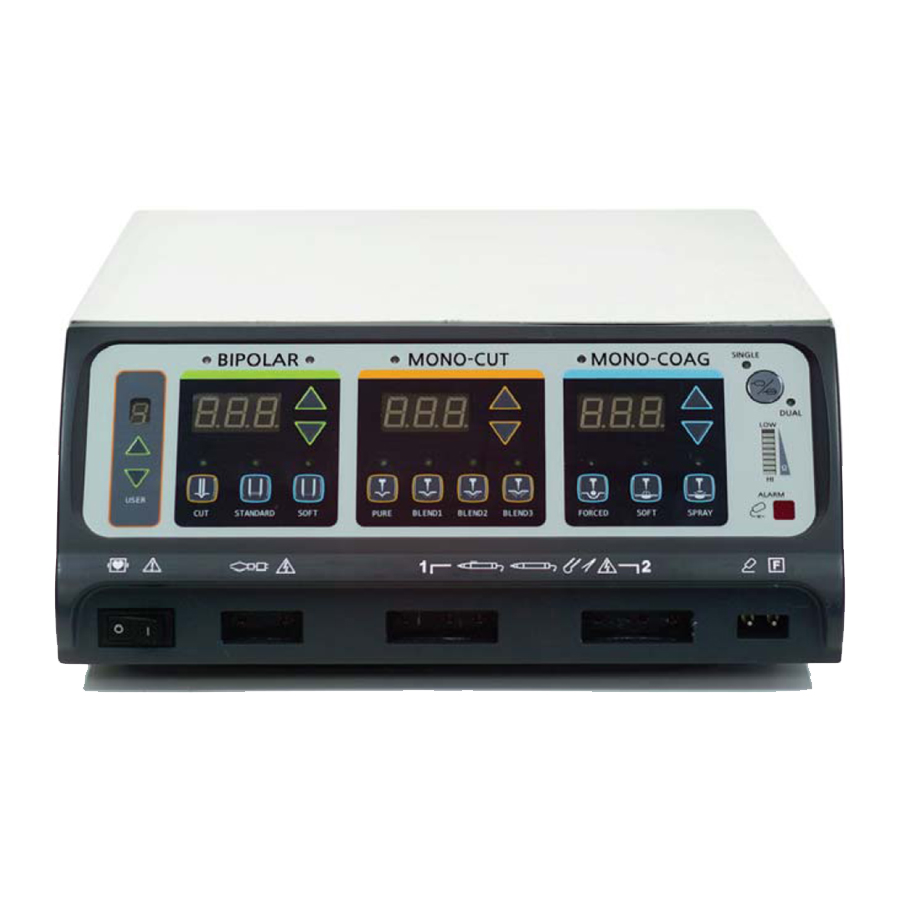

Surgical Cautery Machine DT-400S

MEDITOM Electro Surgical Cautery Machine

Category:

FEATURES

  • New digital display
  • DRM(Daiwha Return Electrode Monitoring System)
  • Automatic shutdown circuit when over current

Purpose
Cutting or coagulation of biological tissue using high-frequency current
Mains and Line Frequency
120(60Hz) or 230VAC (±10%) (50 or 60Hz)/switchable
See the label on rear side for correct information
Fuses
Two of F5.0A, 250V for 230VAC
Two of F10.0A, 250V for 115 VAC
Power Consumption
900VA
Protection Class
Class 1, Type CF
IPX
Foot Switch: IPX6
Carrier Frequency
400 KHz ±10%, 482KHz ±10%
Repeat Frequency
33KHz
Low Freq. Leakage Current
EN60601-1 [2012] Requirement
High Freq. Leakage Current
Less than 150mA
Operation Conditions
10℃~40℃, 30%~ 85% noncondensing, 700mbar~1060mbar
Storage Conditions
-10℃~60℃, 30%~ 95% noncondensing, 700mbar~1060mbar
Transportation Conditions
-10℃~60℃, 30%~ 95% noncondensing, 700mbar~1060mbar
Do not drop the unit from higher than 50cm
Do not use the hook.
Installation Conditions
5cm clearance required on each side unit for cooling
Cooling
1 fan mounted
Recommended Duty Cycle
10 sec ON, 30 sec, OFF (Output for 10 seconds, pause for 30 seconds)
Size (H, W, D)
147mmx 330mm x 417mm
Weight
About 16Kg
APG
Not AP/APG device
Equipment not suitable for use in the presence of a flammable anesthetic
mixture with or with oxygen or nitro oxide
Operation Sound
Difference in operation sounds between cutting and coagulation.
Operation Display
Visible difference in operations between cutting and coagulation.
Output Setting
Displayed in [W] unit from Seven Segment (LED number displayer)

(DT-400S) Tolerance: ±20%

Mode

Carrier Frequency (㎑) Repeat Frequency (㎑) Output RF Power (W)

Load Resistance (Ω)

Pure mode

400 400

500

Blend1 mode

400 33 320 300

Blend2 mode

400 33 240

300

Blend3 mode

400 33 160 300
Forced mode 400 33 120

300

Soft mode

400 33 120 300

Spray mode

400 33 100

500

Cut mode 482 100

200

Standard mode 482

100

100

Soft mode

482 80 100
