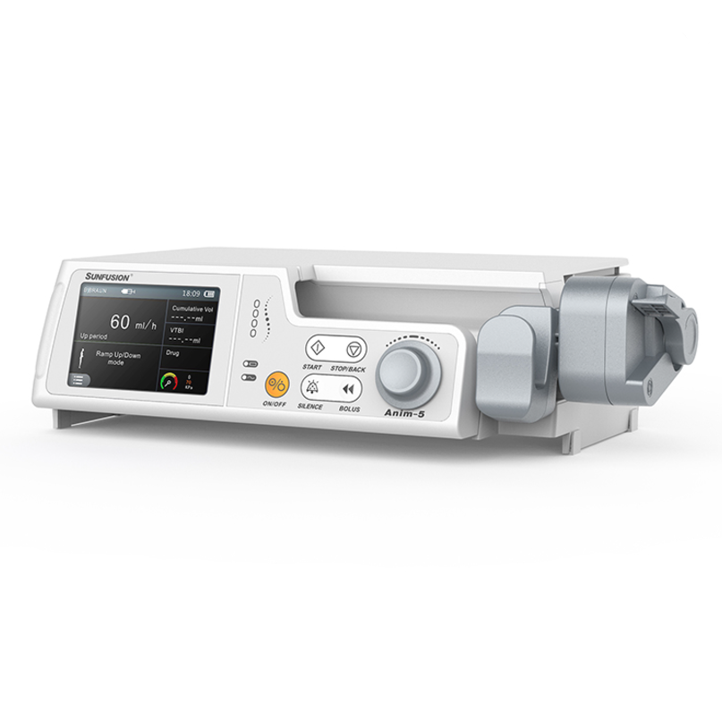

Syringe Pump Anim-5

Certified with ISO9001, ISO13485, CE, ISO14001, OHSAS18001, national GB/T29490-2013 and Grade- III of Work Safety Standardization.

  • Brand-new appearance, small and lightweight, design as portable;
  • 3.5″colorful touchscreen to display various information on one page;
  • Easier operations are provided by simple UI design.
  • High-quality PBT enclosure, which makes medical disinfection and cleaning convenient;
  • Multi – and Across – combination of syringe pump and infusion pump are enabled by Slide guide and lock catch design, which is safe and practical.
  • 8 injection modes are able to satisfy various clinical needs;
  • Applicable to 2ml, 5ml, 10ml, 20ml, 30ml, 50ml/60ml syringes;
  • Rate are adjustable during running state;
  • 10 levels for forgotten operation time are selectable;
  • 30 levels for near finished alarm time are optional to make supervision reliable;
  • Intuitively demonstrate operation instructions by the application of Smart Alarm System.
Model Anim-5
Applicable Syringe Sizes 2 ml, 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml
Rate 2 ml: 0.01~60 ml,

5 ml: 0.01~150 ml,

10 ml: 0.01~300 ml,

20 ml: 0.01~600 ml,

30 ml: 0.01~900 ml,

50/60 ml: 0.01~2200 ml

Bolus Rate & Volume 2 ml: 0.01~48 ml/h               0.1~0.5 ml

5 ml: 0.01~120 ml/h             0.1~1 ml

10 ml: 0.01~240 ml/h           0.1~5 ml

20 ml: 0.01~480 ml/h           0.1~10 ml

30 ml: 0.01~720 ml/h           0.1~10 ml

50/60 ml: 0.01~1500 ml/h   0.1~10 ml

FF Rate 2 ml: 0.01~60 ml

5 ml: 0.01~150 ml

10 ml: 0.01~300 ml

20 ml: 0.01~600 ml

30 ml: 0.01~900 ml

50/60 ml: 0.01~2200 ml

KVO Rate 0.01~5.0 ml/h
KVO Volume 2 ml: 0~0.2ml

5 ml :0~0.2 ml

10 ml: 0~0.2 ml

20 ml: 0~0.5 ml

30 ml: 0~0.5 ml

50/60 ml: 0~1 ml

VTBI

(volume for infusion)

0.01~9999.99 ml, (0.01 ml steps)
Cumulative Infusion Volume 0.01~9999.99 ml, (0.01 ml steps)
Rate Accuracy ±2% (after calibration)
Pressure Values MPa, kPa, Hgmm, inH2O, PSI, mbar
Occlusion Pressure Levels 13 Levels are available (10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130) kPa
Alarm information End of infusion, end of infusion approaching, end of VTBI, system stand-by mode, blocked infusion, syringe off, syringe not inserted properly, operation failed, low battery, battery depleted, abnormal operating condition, malfunction, power failure, etc.
Prompts parameter exceeded, infusion started, mains supply disconnected, flow rate exceeded
Power supply First: 100~240VAC, 50/60Hz;

Second: Internal rechargeable Li battery 11.1V, capacity ≥ 2600mAh, with a fully charged battery, the device can operate for 8 hours at a flow rate of 5 ml / h;

Third: External DC power supply, input voltage 15 V, input current 1.2-1 A. (The DC power supply must meet the requirements of EN / IEC 60601-1.)

Power consumption 25VA
Fuse T2A/250VAC
Classification of the device Contact protection class I device. CF type patient protection. It works continuously.
IP classification IP24
Environmental conditions Temperature: + 5 ℃ ~ + 40 ℃, Relative humidity: 20 ~ 90%, Air pressure: 86.0 kPa ~ 106.0 kPa
Terms of transport and storage Temperature: -20 ℃ ~ + 55 ℃, Relative humidity: ≤93%, Air pressure: 50.0 kPa ~ 106.0 kPa
Size 300 mm(L)×180 mm(W)×90 mm(H)
Net weight 2.0 kg
Screen 3.5” Color LCD, touch screen
WiFi module Yes
Compatible dock station Sunfusion FS3 + CM3
