- Brand-new appearance, small and lightweight, design as portable;
- 3.5″colorful touchscreen to display various information on one page;
- Easier operations are provided by simple UI design.
- High-quality PBT enclosure, which makes medical disinfection and cleaning convenient;
- Multi – and Across – combination of syringe pump and infusion pump are enabled by Slide guide and lock catch design, which is safe and practical.
- 8 injection modes are able to satisfy various clinical needs;
- Applicable to 2ml, 5ml, 10ml, 20ml, 30ml, 50ml/60ml syringes;
- Rate are adjustable during running state;
- 10 levels for forgotten operation time are selectable;
- 30 levels for near finished alarm time are optional to make supervision reliable;
- Intuitively demonstrate operation instructions by the application of Smart Alarm System.

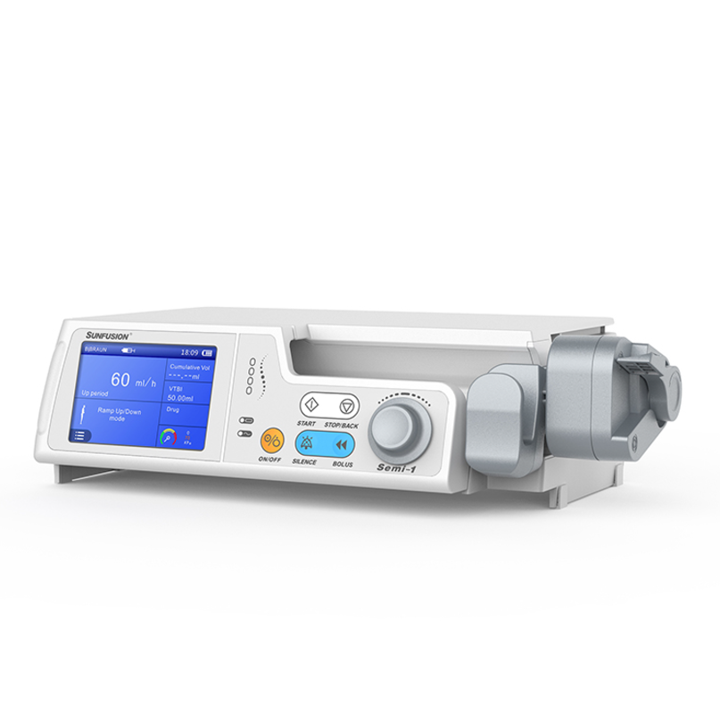

Model | Semi-1 |
Applicable Syringe Sizes | 2 ml, 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml |
Rate | 2 ml: 0.01~60 ml,
5 ml: 0.01~150 ml, 10 ml: 0.01~300 ml, 20 ml: 0.01~600 ml, 30 ml: 0.01~900 ml, 50/60 ml: 0.01~2200 ml |
Bolus Rate & Volume | 2 ml: 0.01~48 ml/h              0.1~0.5 ml
5 ml: 0.01~120 ml/h            0.1~1 ml 10 ml: 0.01~240 ml/h          0.1~5 ml 20 ml: 0.01~480 ml/h          0.1~10 ml 30 ml: 0.01~720 ml/h          0.1~10 ml 50/60 ml: 0.01~1500 ml/h  0.1~10 ml |
FF Rate | 2 ml: 0.01~60 ml
5 ml: 0.01~150 ml 10 ml: 0.01~300 ml 20 ml: 0.01~600 ml 30 ml: 0.01~900 ml 50/60 ml: 0.01~2200 ml |
KVO Rate | 0.01~5.0 ml/h |
KVO Volume | 2 ml: 0~0.2ml
5 ml :0~0.2 ml 10 ml: 0~0.2 ml 20 ml: 0~0.5 ml 30 ml: 0~0.5 ml 50/60 ml: 0~1 ml |
VTBI
(volume for infusion) |
0.01~9999.99 ml, (0.01 ml steps) |
Cumulative Infusion Volume | 0.01~9999.99 ml, (0.01 ml steps) |
Rate Accuracy | ±2% (after calibration) |
Pressure Values | MPa, kPa, Hgmm, inH2O, PSI, mbar |
Occlusion Pressure Levels | 13 Levels are available (10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, 120, 130) kPa |
Alarm information | End of infusion, end of infusion approaching, end of VTBI, system stand-by mode, blocked infusion, syringe off, syringe not inserted properly, operation failed, low battery, battery depleted, abnormal operating condition, malfunction, power failure, etc. |
Prompts | parameter exceeded, infusion started, mains supply disconnected, flow rate exceeded |
Power supply | First: 100~240VAC, 50/60Hz;
Second: Internal rechargeable Li battery 11.1V, capacity ≥ 2600mAh, with a fully charged battery, the device can operate for 8 hours at a flow rate of 5 ml / h; Third: External DC power supply, input voltage 15 V, input current 1.2-1 A. (The DC power supply must meet the requirements of EN / IEC 60601-1.) |
Power consumption | 25VA |
Fuse | T2A/250VAC |
Classification of the device | Contact protection class I device. CF type patient protection. It works continuously. |
IP classification | IP24 |
Environmental conditions | Temperature: + 5 ℃ ~ + 40 ℃, Relative humidity: 20 ~ 90%, Air pressure: 86.0 kPa ~ 106.0 kPa |
Terms of transport and storage | Temperature: -20 ℃ ~ + 55 ℃, Relative humidity: ≤93%, Air pressure: 50.0 kPa ~ 106.0 kPa |
Size | 300 mm(L)×180 mm(W)×90 mm(H) |
Net weight | 2.0 kg |
Screen | 3.5″ Blue LCD, touch screen |
WiFi module | NO |

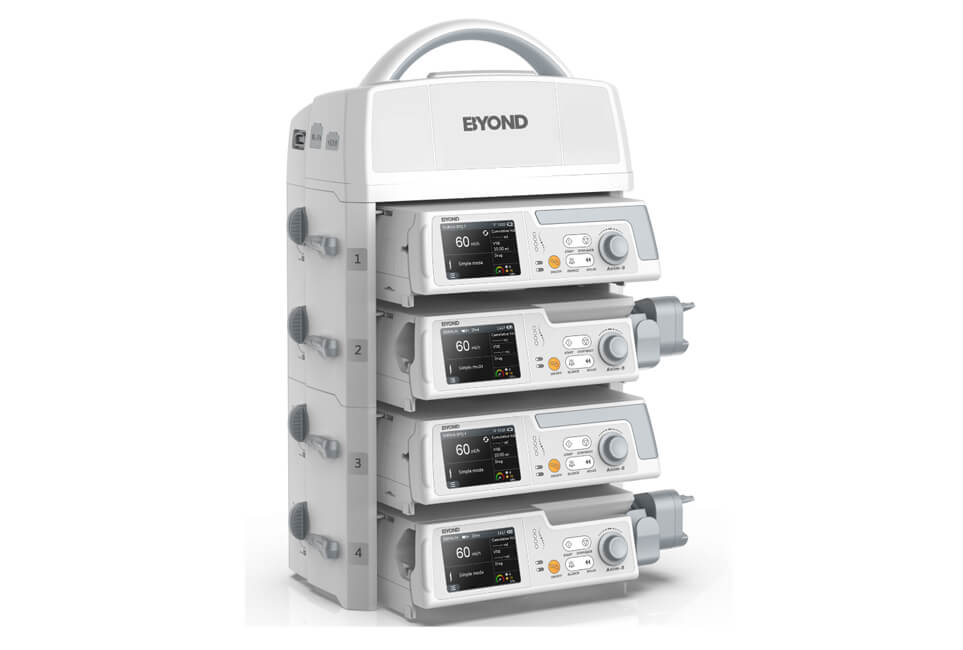

Compatible dock station | Sunfusion PI3 |
