Trunk Stability Rehabilitation Robot Trainer 3DBT-33 target Diseases: Stroke patients, pelvic correction patients, patients who find it uncomfortable to sit upright, patients who have difficulty standing up.
Features

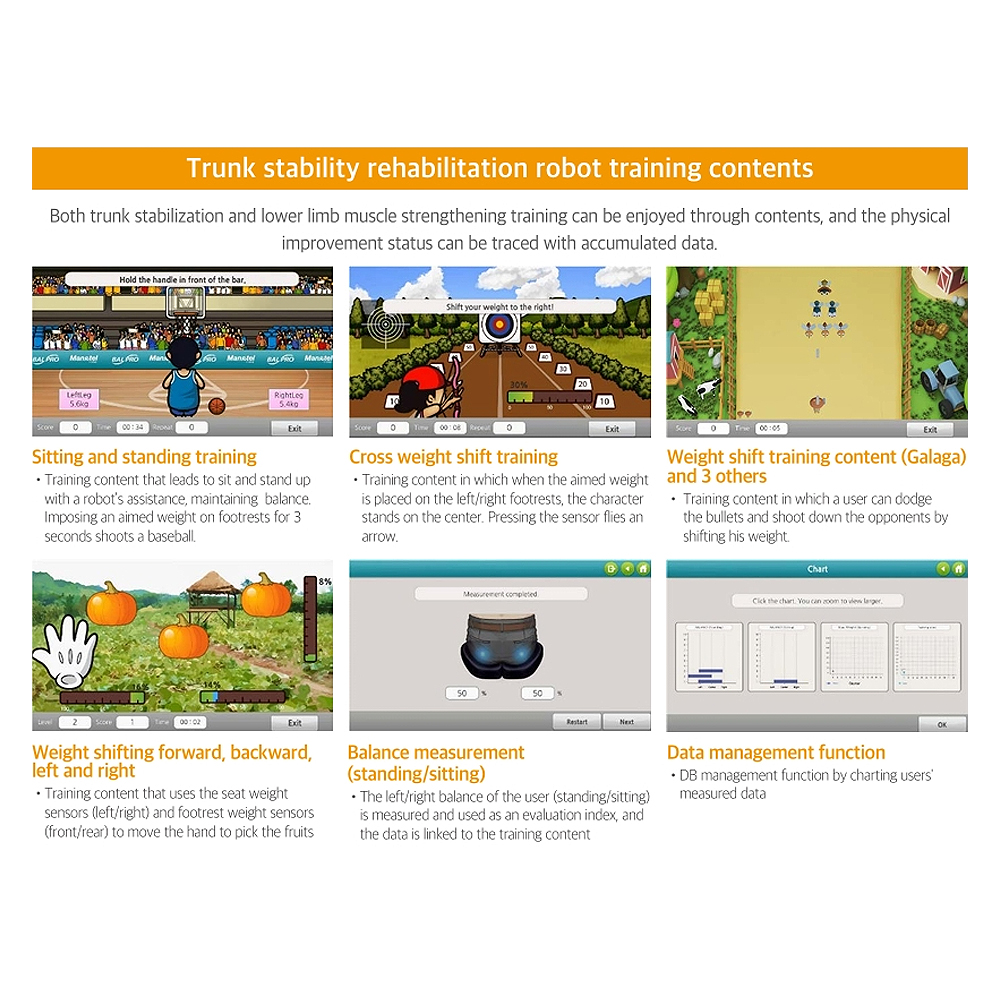

- Different kinds of training by one equipment
- Trunk stability &lower limb assessment &training is possible by using one equipment
- Remote diagnosis, control, update functions
- IT and medical convergence training devices
- Real time bio-feedback training.
- USB 2.0, 3.0 used
- Patient’s own active training
- Easy operation based on touch LCD, Window OS
Functions
- It is a rehabilitation robot training device that stabilizes trunk, exercises lower limb muscle leading to sit and to stand, and also trains lateral movement in standing posture.
- In a standing posture, left and right balance evaluation and center of gravity shift training can be performed.
Specification
- Size(basic) : 700(W) X 1,550(L) X 1,550(H) mm
- Size(with option) : 700(W) X 1,550(L) X 2,000(H) mm
- Product weight : 250Kg •Option Weight : 40Kg
- Max. bearable weight : 150Kg
- Power/Consumption : AC 100-240V, 50/60Hz / 180W
- All-in-one PC, 21.5″Full HD touch screen
Components
- Foothold section, Robot arm section, Robot chair section, All-in one PC, Mechanical body frame, Assessment & Training Contents
- Option : Safety frame, Safety belt(for standing exercise)
