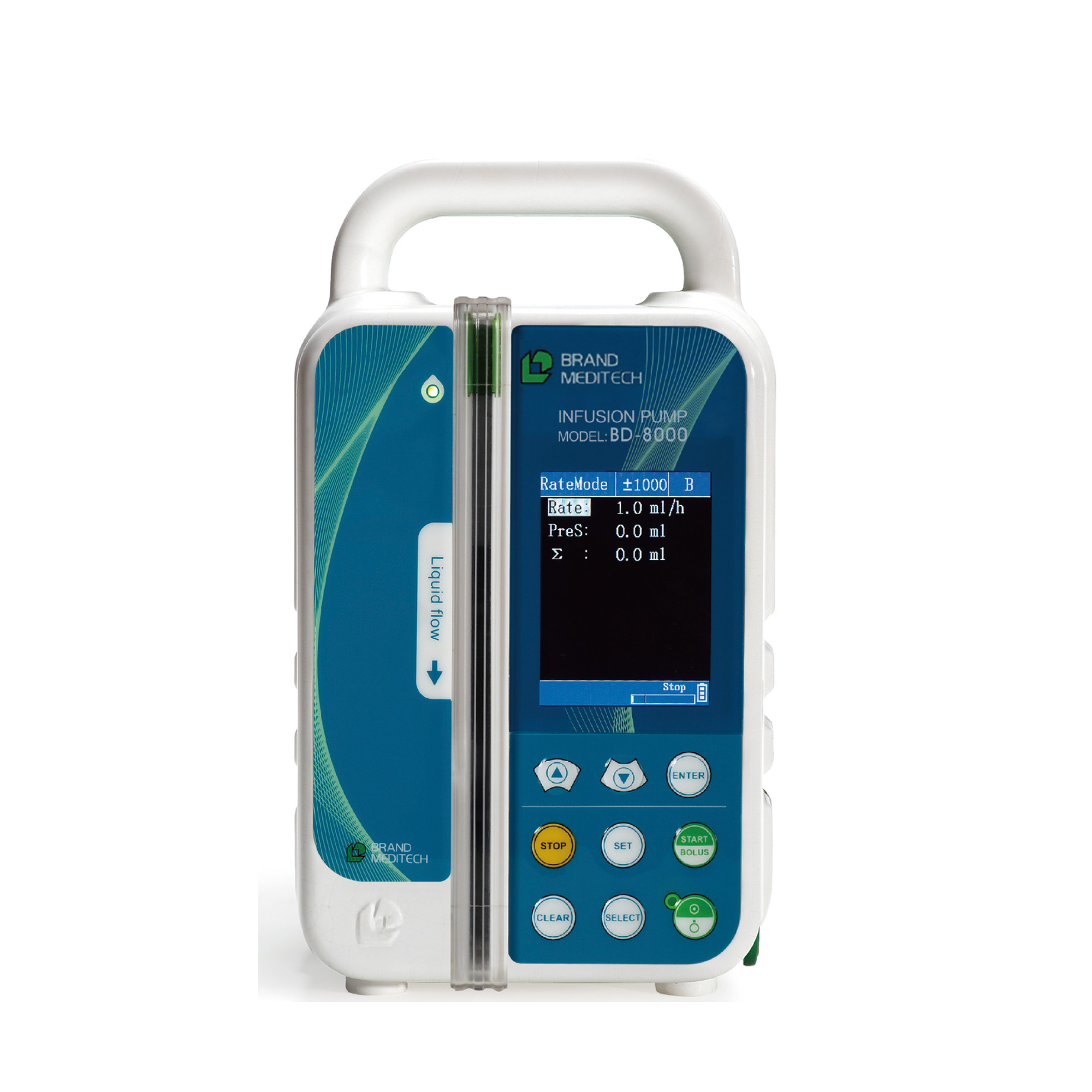

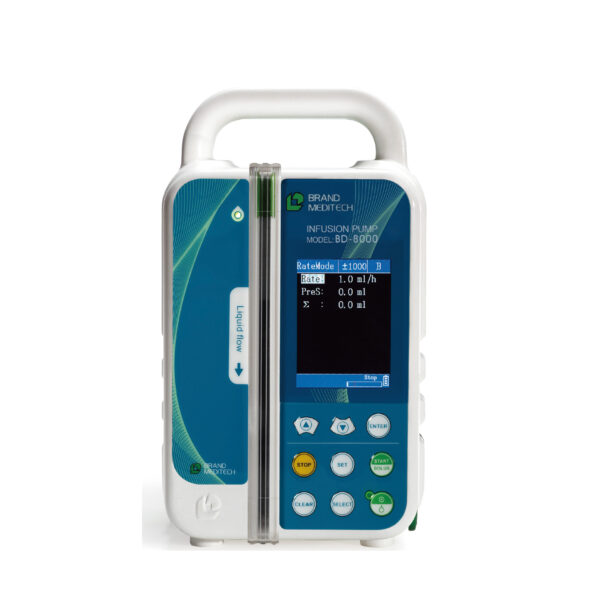

Infusion Pump BD-8000

Infusion Pump

Brand Meditech


Infusion Pump

Model: BD-8000 technique specifications

Infusion rate range: 1-2000ml/h

Bolus rate: 1000ml/h

Double CPU monitoring board, door-free design

Preset infusion range: 1-9999ml, Accumulated volume: 0.1-9999.9ml

Classification: Class II, type BF

Increment: 0.1, 1, 10, 100 and 1000

KVO rate: 1ml/h (KVO will occur after OCCL. Alarm)

Infusion accuracy: ±3% (after being well adjusted, up to ±1%)

Power supply: Widescreen power switch(AC100-240V0),50Hz/60Hz, fuse, T 2AL 250V

Battery: Rechargeable lithium polymer battery, 8.4V, when infusion pump is connected to AC power, the battery will start charging automatically

Max power consumption: 25VA, it can work for more than 4 hours (25ml/h) after being fully charged.

Infusion modes: Rate Model, Time Mode, Body Weight Mode.

Applicable infusion set: national standard infusion set

Applicable standards: GB/T191-2008, GB8368-2005, GB9706.1-2007, GB9706.27-2005, GB9969.1, GB/T14710-1993, YY0466-2003。

Applicable Environmental condition: Environmental temperature:+5℃–+40℃, air pressure:(860-1060)hPa, relative humidity:20%-80%

Displayed information: Flow rate, preset volume, accumulated volume, Battery capacity, AC power symbol, infusion completion, occlusion, air bubbles, bed No. and pressure value etc.

Status indication information: Stop. Run, Bolus, KVO

Alarm function: Over, occlusion, air bubbles, low pressure, installation error of infusion pipe, abnormal1, abnormal2, drops error and serious low battery.

Air Bubble Detection: At the rate of 600ml/h, the smallest bubbles that can be detected are 0.005ml of volume

Infusion Pressure: Maximum pressure is 300kPa; occlusion gate value is 39.2kPa-137.2kPa.The longest time to give occlusion alarm is 2 minutes at rate of 25ml/h. And at rate of 5ml/h is 5 minutes.

Weight: Less than 1.8kg

Outer Shell Material: ABS Plastic
