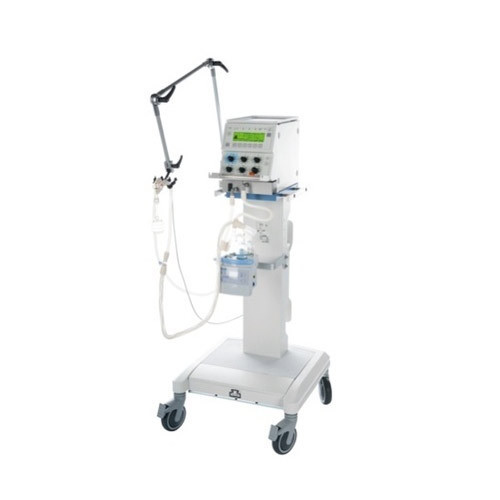

Neonatal Intensive Care Ventilator Babylog 8000 plus

Neonatal Intensive Care Ventilator

Category:

Babylog 8000 plus

PERFORMANCE DATA
Controls
Control principle Continuous flow, pressure-limited, time-cycled
Conventional ventilation IMV/IPPV, CPAP
Triggered ventilation IMV, SIPPV, PSV1, Leak adapted
Trigger Flow/volume trigger, Leak adapted
Trigger delay Approx. 30 ms
High Frequency Ventilation1 3 CPAP+HFV, IMV+HFV
Frequency 5 to 20 Hz
Volume Gurantee Ventilation1 SIMV+VG, SIPPV+VG, PSV+VG
Oxygen mixer loss (bleed flow) 0 (zero) L/min
Settings
Inspiratory Oxygen concentration 21–100 vol.% oxygen
Peak inspiratory pressure 10 to 80 mbar
PEEP/CPAP 0 to 25 mbar
Maximal frequency 200 bpm2
Inspiratory time 0.1 to 2 seconds
Expiratory time 0.2 to 30 seconds
Inspiratory flow 1 to 30 L/min
Base flow (VIVE) 1 to 30 L/min
1. Optional available
2. The maximum frequency is limited to 150 bpm in the USA
3. HFOV is not available in the USA
Monitoring
Flow Monitoring At the Y-piece, integrated
Volume Monitoring At the Y-piece, integrated
Lung function monitoring Compliance, resistance C20/C, time constant, r
FiO2 Monitoring Integrated
Real-time curves Flow and pressure, integrated
Inspiratory Oxygen concentration 21–100 vol.% oxygen
Peak Pressure To 99 mbar
Mean Airway Pressure To 99 mbar
Graphic trends 6 parameters, integrated
Logbook Record of last 100 alarms
